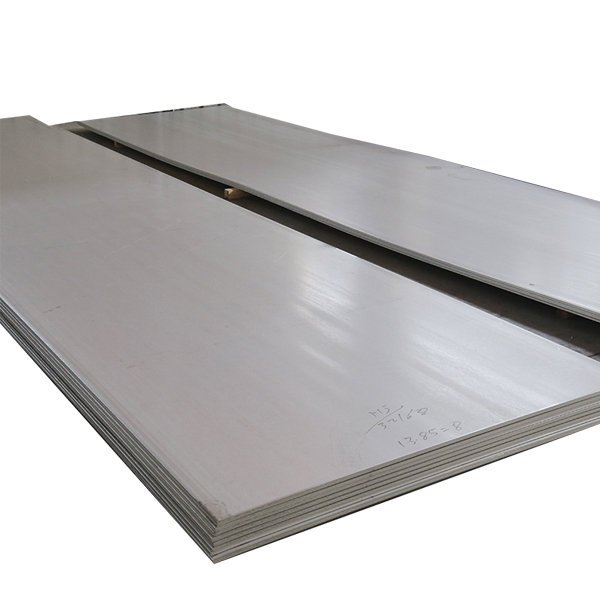

SPCC Cold Rolled Galvanized Low Carbon Steel Sheet
Product Introduction
SPCC Cold Rolled Galvanized Low Carbon Steel Sheet is a popular material. It starts as SPCC low - carbon steel, which is cold - rolled for a smooth surface and better formability. Then, it's galvanized, adding a zinc coating. This coating not only enhances corrosion resistance but also improves durability. Widely used in automotive parts, electrical appliances, and construction, it offers a cost - effective solution with good strength and appearance.
Colded Rolled Process
Main Applications
|
Industry |
Applications |
|
Automotive |
Body panels, such as doors, hoods, and fenders; chassis components; fuel tanks. |
|
Electrical |
Electrical appliance shells, such as those for refrigerators, washing machines, and air conditioners; motor cores. |
|
Construction |
Roofing and wall panels; partition boards; decorative panels. |
|
Machinery |
Machine tool beds; conveyor belts; various mechanical parts. |

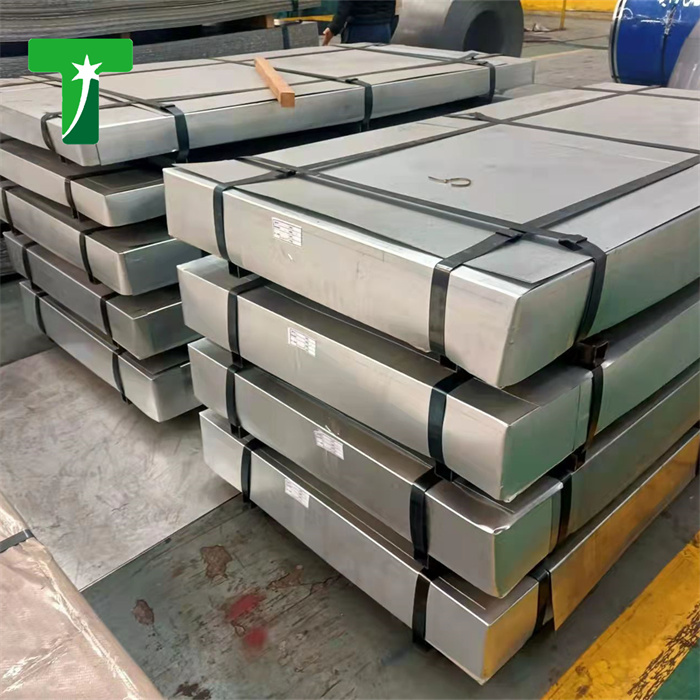

Packaging
FAQ
Q: What is SPCC steel?
A:SPCC is a Japanese Industrial Standard (JIS G 3141) designation for cold-rolled low-carbon steel sheets. When galvanized, it has a zinc coating for corrosion resistance.
Q:Where is SPCC galvanized steel used?
A:Automotive: Body panels, chassis parts.
Appliances: Refrigerators, washing machines.
Construction: Roofing, ducts, light structures.
Q:Does SPCC rust?
A:Non-galvanized SPCC: Rusts easily (needs oil/paint protection).
Galvanized SPCC: Resists rust (zinc acts as a barrier).
Measurement method: direct measurement with digital thickness gauge and at a distance of no less than 1 inch from the edge
|
Width |
Thickness, inches |
|||||
|
0.027 a 0.051 inclusive |
0.051 a 0.057 inclusive |
0.057 a 0.071 inclusive |
0071 a 0.098 inclusive |
0.098 a 0.18 exclusive |
0.18 a 0.23 exclusive |
|
|
20 - 40 inches inclusive |
0.008 |
0.008 |
0.009 |
0.010 |
0.010 |
0.012 |
|
40 - 48 inches inclusive |
0.008 |
0.009 |
0.009 |
0.010 |
0.012 |
0.014 |
|
Width, mm |
Thickness, mm |
|||
|
Hasta 2 mm |
De 2 mm - 2.5 mm inclusive |
2.5 mm a 4.5 mm exclusive |
4.5 mm a 6.0 mm exclusive |
|
|
1200 a 1500 mm inclusive |
0.26 |
0.26 |
0.30 |
0.38 |
|
Minimum thickness, mm |
Nominal thickness, mm |
Maximum thickness, mm |
|
1.47 |
1.59 |
1.70 |
|
1.47 |
1.59 |
1.70 |
|
1.47 |
1.59 |
1.70 |
|
1.47 |
1.59 |
1.70 |
|
1.47 |
1.59 |
1.70 |
|
1.89 |
2.00 |
2.11 |
|
2.25 |
2.38 |
2.51 |
|
2.25 |
2.38 |
2.51 |
|
2.25 |
2.38 |
2.51 |
|
3.02 |
3.18 |
3.33 |
|
3.02 |
3.18 |
3.33 |
|
4.58 |
4.76 |
4.94 |
|
4.64 |
4.76 |
4.89 |
|
4.61 |
4.76 |
4.91 |
|
4.58 |
4.76 |
4.94 |
|
4.56 |
4.76 |
4.97 |
|
4.56 |
4.76 |
4.97 |
|
1.87 |
2.00 |
2.13 |
|
2.85 |
3.00 |
3.15 |
The width tolerance must be according to what is established in table 6 and 7 of the ASTM A568 standard (English System) depending on whether it is a mill edge or cut edge. There is no negative tolerance, only positive.
Width tolerance for mill Edge hot rolled Steel sheet
|
Width, inches |
Upper tolerance, no tolerance under specified width |
|
30 a 50 included |
+1 1/8” |
Width tolerance for cut Edge for hot rolled Steel sheet
|
Width, inches |
Upper tolerance, no tolerance under specified width |
|
30 to 48 inches (included) |
+3/16” |
Measurement method: direct measurement using a measuring tape
|
Hot rolled steel sheet |
Minimum width, mm |
Nominal width, mm |
Maximum width, mm |
|
3' X 6' X 1/16" |
914.40 |
914.40 |
919.16 |
|
3' X 6' X 3/16" |
914.40 |
914.40 |
919.16 |
|
3' X 7' X 1/16" |
914.40 |
914.40 |
919.16 |
|
3' X 8' X 1/16" |
914.40 |
914.40 |
919.16 |
|
3' X 8' X 3/16" |
914.40 |
914.40 |
919.16 |
|
4' X 8' X 1/16" |
1219.20 |
1219.20 |
1223.96 |
|
4' X 8' X 1/8" |
1219.20 |
1219.20 |
1223.96 |
|
4' X 8' X 3/16" |
1219.20 |
1219.20 |
1223.96 |
|
4' X 8' X 2.0mm |
1219.20 |
1219.20 |
1223.96 |
|
4' X 8' X 3.0mm |
1219.20 |
1219.20 |
1223.96 |
|
4' X 8' X 3/32" |
1219.20 |
1219.20 |
1223.96 |
|
4' X 10' X 1/16" |
1219.20 |
1219.20 |
1223.96 |
|
4' X 10' X 1/8" |
1219.20 |
1219.20 |
1223.96 |
|
4' X 10' X 3/16" |
1219.20 |
1219.20 |
1223.96 |
The length tolerance must be in accordance with what is established in table 8 of the ASTM A568 standard. There is no negative tolerance, only positive.
|
Length, inches |
Tolerance over, no tolerance under |
|
60 a 120 (included) (6, 7, 8, 9 y 10 pies) |
+ ¾” |
Measurement method: direct measurement using a measuring tape
|
Hot rolled steel sheet |
Minimum length, mm |
Nominal length, mm |
Maximum length, mm |
|
3' X 6' X 1/16" |
1828.80 |
1828.80 |
1847.85 |
|
3' X 6' X 3/16" |
1828.80 |
1828.80 |
1847.85 |
|
3' X 7' X 1/16" |
2133.60 |
2133.60 |
2152.65 |
|
3' X 8' X 1/16" |
2438.40 |
2438.40 |
2457.45 |
|
3' X 8' X 3/16" |
2438.40 |
2438.40 |
2457.45 |
|
4' X 8' X 1/16" |
2438.40 |
2438.40 |
2457.45 |
|
4' X 8' X 1/8" |
2438.40 |
2438.40 |
2457.45 |
|
4' X 8' X 3/16" |
2438.40 |
2438.40 |
2457.45 |
|
4' X 8' X 2.0mm |
2438.40 |
2438.40 |
2457.45 |
|
4' X 8' X 3.0mm |
2438.40 |
2438.40 |
2457.45 |
|
4' X 8' X 3/32" |
2438.40 |
2438.40 |
2457.45 |
|
4' X 10' X 1/16" |
3048.00 |
3048.00 |
3067.05 |
|
4' X 10' X 1/8" |
3048.00 |
3048.00 |
3067.05 |
|
4' X 10' X 3/16" |
3048.00 |
3048.00 |
3067.05 |
Maximum straightness should be according to table 10 of ASTM A568 Standard.
|
Length, feet |
Tolerance |
|
4 a 6 (included) |
3/16” |
|
6 a 8 (included) |
¼” |
|
8 a 10 (included) |
5/16” |
Method of measurement: According to ASTM A1030/A1030M Standard: Practice for Measuring Flatness Characteristics of Steel Sheet Products
|
Thickness, inches |
Width, inches |
Tolerance of flatness |
|||
|
Minumum yield strength, ksi |
|||||
|
Less than 45 |
45 to 55 |
55 to 80 |
80 to 100 |
||
|
0.057 a 0.18 exclusive (1/16, 1/8, 3/32) |
12 a 60 incl. |
1 ½ |
2 ¼ |
2 ½ |
2 ¾ |
|
60 a 72 incl. (6 feet) |
2 ¼ |
3 3/8” |
3 ½” |
3 ¾” |
|
|
> 72 incl. (7, 8 y 10 feet) |
3 |
4 ½ |
4 ¾ |
5 |
|
|
0.18 a 0.23 exclusive (3/16”) |
12 a 60 incl. |
1 ½ |
2 ¼ |
2 ¼ |
2 ¾ |
|
60 a 72 incl. (6 feet) |
2 ¼ |
3 3/8 |
3 3/8 |
3 ¾ |
|
|
>72 (7, 8 y 10 pies) |
3 |
4 ½ |
4 ½ |
5 |
|
Out of square
The out-of-square tolerance must be according to what is indicated in table 11 of the ASTM A568 standard.Out of square is the greatest deviation of the end of the edge from a straight line at right angles to one side touching the corner. It is also obtained by measuring the difference of diagonals. The out of square is half of this difference:The maximum out of square should be 1/16” per 6 inches width, that means, 1/8” / feet of width.
Measurement method: Direct measurement with tape measure
|
Width, feet |
Out of square, inches |
|
3 |
0.375 |
|
4 |
0.5 |
Chemical Composition
According to ASTM A36 Standard
|
Element |
Maximum concentration (w/w) |
|
C |
0.26 |
|
Mn |
N/A |
|
P |
0.04 |
|
S |
0.05 |
|
Si, max |
0.40 |
Mechanical characteristicas
The sheet must meet the mechanical requirements of grade 36 as indicated in the following table:
|
Characteristic |
Specification |
|
Yield strength, psi [MPa] |
36000 [250] |
|
Tensile strength, psi [MPa] |
58000 – 80000 [400 – 550] |
|
Elongation in 8 inches, % |
20% |
