Structural Steel

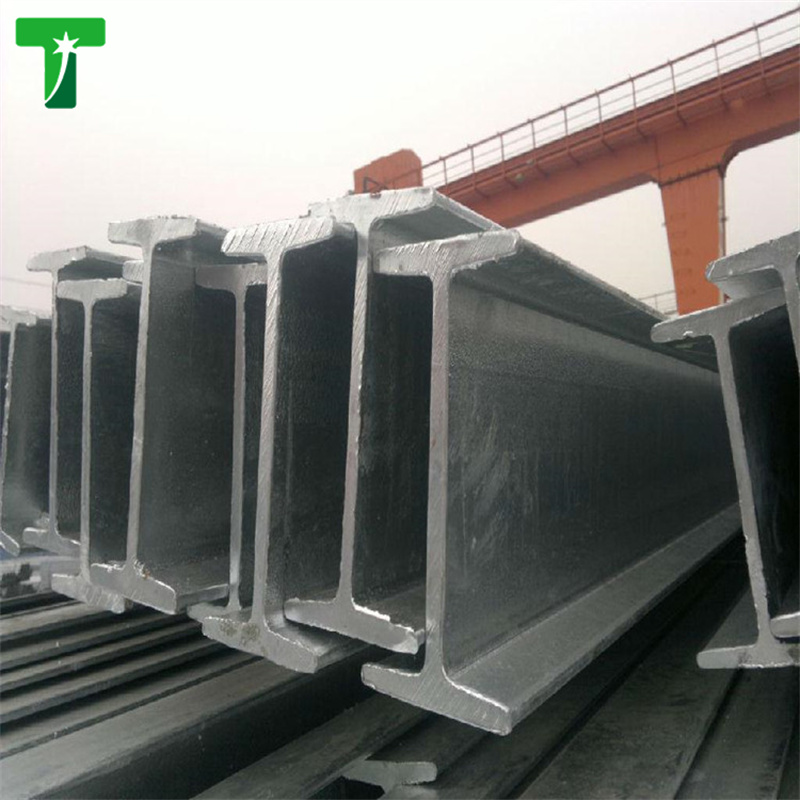

I Beam JIS Ss400 Steel Beam/structural Steel H beam
Construction

I Beam JIS Ss400 Steel Beam/structural Steel H beam

DETAILS AND PARAMETERS
TOLERANCES
TECHNICAL SHEET

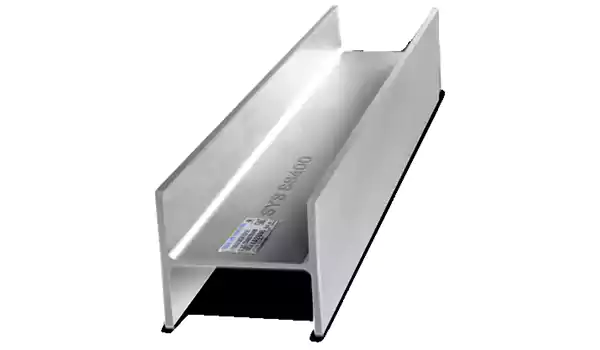

I beam introduction

H-Steel, commonly referred to as an I-Beam, is a fundamental hot-rolled structural steel product characterized by its distinctive I-shaped cross-section. Comprising two parallel horizontal flanges connected by a vertical web, this design grants it excellent load-bearing capacity and bending resistance, making it a cornerstone material in construction, infrastructure, and industrial engineering.

Key Performance Characteristics

High Bending Strength: The I-shaped cross-section maximizes the distance between the flanges, which significantly enhances the section modulus and moment of inertia, enabling it to withstand large bending loads without excessive deformation.

Good Shear Resistance: The vertical web is engineered to effectively resist shear forces generated by external loads, ensuring structural integrity under dynamic or static stress.

Efficient Material Utilization: The cross-sectional design concentrates material in the flanges (where bending stresses are highest) and uses a thinner web for shear resistance, avoiding material waste while maintaining performance.

Easy Fabrication & Installation: Its regular shape facilitates cutting, drilling, welding, and connection with other structural components (e.g., bolts, brackets), streamlining construction processes.

Cost-Effectiveness: As a standardized hot-rolled product, it is mass-produced with mature technology, resulting in relatively low costs compared to custom-shaped structural steels.I beam introduction

H-Steel, commonly referred to as an I-Beam, is a fundamental hot-rolled structural steel product characterized by its distinctive I-shaped cross-section. Comprising two parallel horizontal flanges connected by a vertical web, this design grants it excellent load-bearing capacity and bending resistance, making it a cornerstone material in construction, infrastructure, and industrial engineering.

Key Performance Characteristics

High Bending Strength: The I-shaped cross-section maximizes the distance between the flanges, which significantly enhances the section modulus and moment of inertia, enabling it to withstand large bending loads without excessive deformation.

Good Shear Resistance: The vertical web is engineered to effectively resist shear forces generated by external loads, ensuring structural integrity under dynamic or static stress.

Efficient Material Utilization: The cross-sectional design concentrates material in the flanges (where bending stresses are highest) and uses a thinner web for shear resistance, avoiding material waste while maintaining performance.

Easy Fabrication & Installation: Its regular shape facilitates cutting, drilling, welding, and connection with other structural components (e.g., bolts, brackets), streamlining construction processes.

Cost-Effectiveness: As a standardized hot-rolled product, it is mass-produced with mature technology, resulting in relatively low costs compared to custom-shaped structural steels.

Product Name

Steel H Beam, H Section Steel Beams, H Shape Steel Beam, Structural Steel H Beam, H Metal Beam

Sizes

1. Web Width (H): 100-900mm

2. Flange Width (B): 100-300mm

3. Web Thickness (t1): 5-30mm

Length

9m 12m or Customized

Standard

JIS EN ASTM ,ect.

Material

Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60 A992 G300

Technique

Hot / Cold Rolled/Welding

Application

Construction structure

Inspection

SGS BV INTERTEK

Packing

In bundle fasten by steel strip

Surface

Polishing, annealing, pickling, bright

Machining

Custom, Kaiping, cutting, pattern



Measure

Area, in2

Flange, bf

Web, d

width bf, in

Thickness tf, in

Width d, in

Thickness (tw) in

Minimum

Nominal

Maximum

Minimum

Nominal

Maximum

Minimum

Nominal

Maximum

Minimum

Nominal

Maximum

BEAM H 4 x 4 x 13 LBS x PIE x 40'

3.83

3.873

4.060

4.310

0.324

0.345

N/A

4.035

4.160

4.285

0.263

0.280

N/A

BEAM H 4 x 4 x 13 LBS x FTx 20'

3.83

3.873

4.060

4.310

0.324

0.345

N/A

4.035

4.160

4.285

0.263

0.280

N/A

BEAM H 6 x 6 x 15 LBS x PIE x 40'

4.43

5.803

5.990

6.240

0.244

0.260

N/A

5.865

5.990

6.115

0.216

0.230

N/A

BEAM H 6 x 6 x 15 LBS x FTx 20'

4.43

5.803

5.990

6.240

0.244

0.260

N/A

5.865

5.990

6.115

0.216

0.230

N/A

BEAM H 8 x 8 x 31 LBS x PIE x 40'

9.13

7.808

7.995

8.245

0.409

0.435

N/A

7.875

8.000

8.125

0.268

0.285

N/A

BEAM H 8 x 8 x 31 LBS x FTx 20'

9.13

7.808

7.995

8.245

0.409

0.435

N/A

7.875

8.000

8.125

0.268

0.285

N/A

Beam WF 6x9 LBS x FTx 20'

2.68

3.750

3.940

4.190

0.207

0.220

N/A

5.780

5.900

6.030

0.160

0.170

N/A

Beam WF 6x9 LBS x FTx 40'

2.68

3.750

3.940

4.190

0.207

0.220

N/A

5.780

5.900

6.030

0.160

0.170

N/A

Beam WF 6x12 LBS x ft 20'

3.55

3.810

4.000

4.250

0.263

0.280

N/A

5.910

6.030

6.160

0.216

0.230

N/A

Beam WF 6x12 LBS x ft 40'

3.55

3.810

4.000

4.250

0.263

0.280

N/A

5.910

6.030

6.160

0.216

0.230

N/A

BEAM WF 6 X 15 LBS X FTX 20'

4.43

5.803

5.990

6.240

0.244

0.260

N/A

5.865

5.990

6.115

0.216

0.230

N/A

BEAM WF 6 X 15 LBS X FTX 40'

4.43

5.803

5.990

6.240

0.244

0.260

N/A

5.865

5.990

6.115

0.216

0.230

N/A

Beam WF 6x20 LBS x FTx 20'

5.87

5.830

6.020

6.270

0.348

0.370

N/A

6.080

6.200

6.330

0.244

0.260

N/A

Beam WF 6x20 LBS x FTx 40'

5.87

5.830

6.020

6.270

0.348

0.370

N/A

6.080

6.200

6.330

0.244

0.260

N/A

Beam WF 8x10 LBS x FTx 20'

2.96

3.750

3.940

4.190

0.197

0.210

N/A

7.770

7.890

8.020

0.160

0.170

N/A

Beam WF 8x10 LBS x FTx 40'

2.96

3.750

3.940

4.190

0.197

0.210

N/A

7.770

7.890

8.020

0.160

0.170

N/A

Beam WF 8x15 LBS x FTx 20'

4.44

3.830

4.020

4.270

0.301

0.320

N/A

7.990

8.110

8.240

0.235

0.250

N/A

Beam WF 8x15 LBS x FTx 40'

4.44

3.830

4.020

4.270

0.301

0.320

N/A

7.990

8.110

8.240

0.235

0.250

N/A

Beam WF 8x18 LBS x FTx 20'

5.26

5.060

5.250

5.500

0.310

0.330

N/A

8.020

8.140

8.270

0.216

0.230

N/A

Beam WF 8x18 LBS x FTx 40'

5.26

5.060

5.250

5.500

0.310

0.330

N/A

8.020

8.140

8.270

0.216

0.230

N/A

Beam WF 8x24 LBS x FTx 20'

7.08

6.310

6.500

6.750

0.376

0.400

N/A

7.810

7.930

8.060

0.235

0.250

N/A

Beam WF 8x24 LBS x FTx 40'

7.08

6.310

6.500

6.750

0.376

0.400

N/A

7.810

7.930

8.060

0.235

0.250

N/A

BEAM WF 10 X 12 LBS X FTX 20'

3.54

3.770

3.960

4.210

0.197

0.210

N/A

9.750

9.870

10.000

0.179

0.190

N/A

Beam WF 10x12 LBS x FTx 40'

3.54

3.770

3.960

4.210

0.197

0.210

N/A

9.750

9.870

10.000

0.179

0.190

N/A

BEAM WF 10 X 15 LBS X FTX 20'

4.41

3.810

4.000

4.250

0.254

0.270

N/A

9.870

9.990

10.120

0.216

0.230

N/A

Beam WF 10x15 LBS x FTx 40'

4.41

3.810

4.000

4.250

0.254

0.270

N/A

9.870

9.990

10.120

0.216

0.230

N/A

BEAM WF 10 X 17 LBS X FTX 20'

4.99

3.820

4.010

4.260

0.310

0.330

N/A

9.990

10.110

10.240

0.226

0.240

N/A

Beam WF 10x17 LBS x FTx 40'

4.99

3.820

4.010

4.260

0.310

0.330

N/A

9.990

10.110

10.240

0.226

0.240

N/A

BEAM WF 10 X 19 LBS X FTX 20'

5.62

3.830

4.020

4.270

0.371

0.395

N/A

10.120

10.240

10.370

0.235

0.250

N/A

Beam WF 10x19 LBS x FTx 40'

5.62

3.830

4.020

4.270

0.371

0.395

N/A

10.120

10.240

10.370

0.235

0.250

N/A

BEAM WF 10 X 22 LBS X FTX 20'

6.49

5.560

57.750

6.000

0.338

0.360

N/A

10.050

10.170

10.300

0.226

0.240

N/A

Beam WF 10x22 LBS x FTx 40'

6.49

5.560

57.750

6.000

0.338

0.360

N/A

10.050

10.170

10.300

0.226

0.240

N/A

BEAM WF 10 X 26 LBS X FTX 20'

7.61

5.580

5.770

6.020

0.414

0.440

N/A

10.210

10.330

10.460

0.244

0.260

N/A

Beam WF 10x26 LBS x FTx 40'

7.61

5.580

5.770

6.020

0.414

0.440

N/A

10.210

10.330

10.460

0.244

0.260

N/A

BEAM WF 10 X 30 LBS X FTX 20'

8.84

5.620

5.810

6.060

0.479

0.510

N/A

10.350

10.470

10.600

0.282

0.300

N/A

Beam WF 10x30 LBS x FTx 40'

8.84

5.620

5.810

6.060

0.479

0.510

N/A

10.350

10.470

10.600

0.282

0.300

N/A

BEAM WF 10 X 33 LBS X FTX 20'

9.71

7.770

7.960

8.210

0.409

0.435

N/A

9.610

9.730

9.860

0.273

0.290

N/A

BEAM WF 10 X 39 X 40'

11.50

7.798

7.985

8.235

0.498

0.530

N/A

9.795

9.920

10.045

7.506

7.985

N/A

Beam WF 10x33 LBS x FTx 40'

9.71

7.770

7.960

8.210

0.409

0.435

N/A

9.610

9.730

9.860

0.273

0.290

N/A

Beam WF 10x45 LBS x FTx 40'

13.30

7.830

8.020

8.270

0.583

0.620

N/A

9.980

10.100

10.230

0.329

0.350

N/A

BEAM WF 10 X 49 LBS X FTX 40'

14.40

9.813

10.000

10.250

0.526

0.560

N/A

9.855

9.980

10.105

0.320

0.340

N/A

BEAM WF 10 X 60 LBS X FTX 20'

17.60

9.893

10.080

10.330

0.639

0.680

N/A

10.095

10.220

10.345

0.395

0.420

N/A

BEAM WF 10 X 60 LBS X FTX 40'

17.60

9.893

10.080

10.330

0.639

0.680

N/A

10.095

10.220

10.345

0.395

0.420

N/A

BEAM WF 12 x 14 LBS x FTx 20'

4.16

3.780

3.970

4.220

0.216

0.230

N/A

11.780

11.910

12.040

0.188

0.200

N/A

BEAM WF 12 X 14 LBS X FTX 40'

4.16

3.780

3.970

4.220

0.216

0.230

N/A

11.780

11.910

12.040

0.188

0.200

N/A

Beam WF 12x16 LBS x FTx 20'

4.71

3.800

3.990

4.240

0.254

0.270

N/A

11.870

11.990

12.120

0.207

0.220

N/A

Beam WF 12x16 LBS x FTx 40'

4.71

3.800

3.990

4.240

0.254

0.270

N/A

11.870

11.990

12.120

0.207

0.220

N/A

Beam WF 12x19 LBS x FTx 20'

5.57

3.820

4.010

4.260

0.329

0.350

N/A

12.020

12.160

12.290

0.226

0.240

N/A

Beam WF 12x19 LBS x FTx 40'

5.57

3.820

4.010

4.260

0.329

0.350

N/A

12.020

12.160

12.290

0.226

0.240

N/A

Beam WF 12x22 LBS x FTx 20'

6.48

3.840

4.030

4.280

0.404

0.430

N/A

12.190

12.310

12.440

0.244

0.260

N/A

Beam WF 12x22 LBS x FTx 40'

6.48

3.840

4.030

4.280

0.404

0.430

N/A

12.190

12.310

12.440

0.244

0.260

N/A

Beam WF 12x26 LBS x FTx 20'

7.65

6.300

6.490

6.740

0.357

0.380

N/A

12.100

12.220

12.350

0.216

0.230

N/A

Beam WF 12x26 LBS x FTx 40'

7.65

6.300

6.490

6.740

0.357

0.380

N/A

12.100

12.220

12.350

0.216

0.230

N/A

Beam WF 12x30 LBS x FTx 20'

8.79

6.330

6.520

6.770

0.414

0.440

N/A

12.220

12.340

12.470

0.244

0.260

N/A

Beam WF 12x30 LBS x FTx 40'

8.79

6.330

6.520

6.770

0.414

0.440

N/A

12.220

12.340

12.470

0.244

0.260

N/A

Beam WF 12x35 LBS x FTx 20'

10.30

6.370

6.560

6.810

0.489

0.520

N/A

12.380

12.500

12.630

0.282

0.300

N/A

Beam WF 12x35 LBS x FTx 40'

10.30

6.370

6.560

6.810

0.489

0.520

N/A

12.380

12.500

12.630

0.282

0.300

N/A

Beam WF 12x40 LBS x FTx 20'

11.80

7.820

8.010

8.260

0.484

0.515

N/A

11.820

11.940

12.070

0.282

0.300

N/A

Beam WF 12x40 LBS x FTx 40'

11.80

7.820

8.010

8.260

0.484

0.515

N/A

11.820

11.940

12.070

0.282

0.300

N/A

BEAM WF 12 X 45 LBS X FTX 40'

13.20

7.858

8.045

8.295

0.541

0.575

N/A

11.935

12.060

12.185

0.315

0.335

N/A

BEAM WF 12X 65. LBS X FTX20P

19.10

11.813

12.000

12.250

0.569

0.605

N/A

11.995

12.120

12.245

0.367

0.390

N/A

Beam WF 14x22 LBS x FTx 20'

6.49

4.810

5.000

5.250

0.315

0.335

N/A

13.620

13.740

13.870

0.216

0.230

N/A

Beam WF 14x22 LBS x FTx 40'

6.49

4.810

5.000

5.250

0.315

0.335

N/A

13.620

13.740

13.870

0.216

0.230

N/A

Beam WF 14x26 LBS x FTx 20'

7.69

4.840

5.030

5.280

0.395

0.420

N/A

13.790

13.910

14.040

0.244

0.260

N/A

Beam WF 14x26 LBS x FTx 40'

7.69

4.840

5.030

5.280

0.395

0.420

N/A

13.790

13.910

14.040

0.244

0.260

N/A

Beam WF 14x30 LBS x FTx 20'

8.85

6.540

6.730

6.980

0.362

0.385

N/A

13.720

13.840

13.970

0.254

0.270

N/A

Beam WF 14x30 LBS x FTx 40'

8.85

6.540

6.730

6.980

0.362

0.385

N/A

13.720

13.840

13.970

0.254

0.270

N/A

BEAM WF 14 X 34 LBS X FTX 20'

10.00

6.558

6.745

6.995

0.428

0.455

N/A

13.855

13.980

14.105

0.268

0.285

N/A

BEAM WF 14 X 34 LBS X FTX 40'

10.00

6.558

6.745

6.995

0.428

0.455

N/A

13.855

13.980

14.105

0.268

0.285

N/A

Beam WF 14x38 LBS x FTx 20'

11.20

6.580

6.770

7.020

0.484

0.515

N/A

13.980

14.100

14.230

0.291

0.310

N/A

Beam WF 14x38 LBS x FTx 40'

11.20

6.580

6.770

7.020

0.484

0.515

N/A

13.980

14.100

14.230

0.291

0.310

N/A

Beam WF 14x43 LBS x FTx 40'

12.60

7.810

8.000

8.250

0.498

0.530

N/A

13.540

13.660

13.790

0.291

0.310

N/A

Beam WF 14x48 LBS x FTx 20'

14.10

7.840

8.030

8.280

0.559

0.595

N/A

13.670

13.790

13.920

0.320

0.340

N/A

Beam WF 14x48 LBS x FTx 40'

14.10

7.840

8.030

8.280

0.559

0.595

N/A

13.670

13.790

13.920

0.320

0.340

N/A

BEAM WF 14 X 53 LBS X FTX 20'

15.50

7.873

8.060

8.310

0.620

0.660

N/A

13.795

13.920

14.045

0.348

0.370

N/A

BEAM WF 14 X 53 LBS X FTX 40'

15.50

7.873

8.060

8.310

0.620

0.660

N/A

13.795

13.920

14.045

0.348

0.370

N/A

Beam WF 14x68 LBS x FTx 20'

20.00

9.850

10.040

10.290

0.677

0.720

N/A

13.920

14.040

14.170

0.395

0.420

N/A

Beam WF 14x68 LBS x FTx 40'

20.00

9.850

10.040

10.290

0.677

0.720

N/A

13.920

14.040

14.170

0.395

0.420

N/A

Beam WF 14x74 LBS x FTx 40'

21.80

9.880

10.070

10.320

0.738

0.785

N/A

14.050

14.170

14.300

0.423

0.450

N/A

Beam WF 14x82 LBS x FTx 20'

24.10

9.930

10.120

10.370

0.804

0.855

N/A

14.190

14.310

14.440

0.479

0.510

N/A

Beam WF 14x82 LBS x FTx 40'

24.10

9.930

10.120

10.370

0.804

0.855

N/A

14.190

14.310

14.440

0.479

0.510

N/A

BEAM WF 14X 90 LBS X FTX40P

26.50

14.333

14.520

14.770

0.667

0.710

N/A

13.895

14.020

14.145

0.414

0.440

N/A

According to grade 50 for ASTM A572 and ASTM A992 Standard

Yield strength, psi

Tensile strength, psi

Elongation in 8”

Elongation in 2”

50,000

65,000

18

21

Chemical composition

The beams must have a chemical composition in accordance with ASTM A572 and ASTM A992.

Element

ASTM A572

ASTM A992

C

0.23

0.23

Mn

1.35

0.50 - 1.60

P

0.03

0.035

S

0.03

0.045

Si, max



0.4

V, max



0.15

Nb, max.



0.05

Cu, max.



0.6

Ni, max.



0.45

Cr, max.



0.35

Mo, max.



0.15

Maximum values of V, Nb, Ti and N2 depends on de beam

Superficial quality

Rust: No oxidation or slight oxidation on no more than 50% of the surface. No corrosion

Free of surface lamination defects (no mil defects)

Cut: Straight, without residue (straight cut).

Handling and storage

Loading and unloading

Related Posts
Generator Components Which You Should Know
Construction
2025-09-22 16:43:11
ASTM A335 P91 High T...
High-temperature and high-pressure seamless pipes ...
Generator Components Which You Should Know
Construction
2025-09-11 14:02:19
Galvanized coil shee...
Premium Galvanized Coil Sheet – hot-dip (HDG) & e...
Comments (2)

Katherine A. Fogg
November 25, 2024

Their products are of excellent quality and they offer generous discounts. This is their third cooperation

Leave a Reply

Your email address will not be published. Required fields are marked with *
