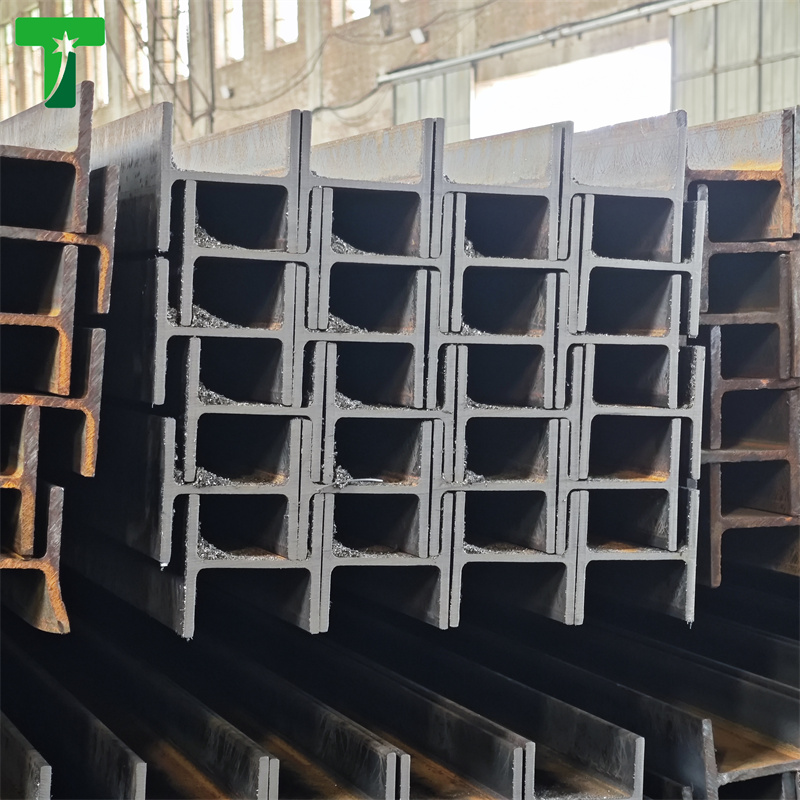

Hot Sell SS540 S235 S275 S355 A36 A572 Structural Steel Beams Standard Size Galvanized H-beam Price
Product details
Galvanized H-steel, a key product in the structural steel category, is formed by applying a zinc coating to standard H-steel (also known as H-beam) through specific galvanization processes. This coating significantly enhances the material’s corrosion resistance, extending its service life and expanding its applicability across various industries.
01 HIGH STRENGTH
The cross-sectional shape of H-shaped steel is reasonably designed and has high strength. Compared with other steel materials,H-shaped steel has higher strength and can withstand greater loads.
02 STRONG BENDING RESISTANCE
The cross-sectional shape of H-shaped steel is similar to the letter "H" and has a high moment of inertia, giving it good bending resistance. ln building structures, H-shaped steel can effective-ly resist bending deformation from external forces and maintain the stability of the structure.
03 GOOD PLASTICITY AND RELIABILITY
H-shaped steel can be remanufactured through processing and has good plasticity and reliability.In different application fields,cutting, welding, bending and other processing techniques can be carried out as needed to meet the requirements of different structural designs.
04 STEEL GRADES
The base steel of galvanized H-steel follows structural steel standards, with common grades including:
Carbon Steel: Q235B (China), S235JR (EU), A36 (US)—suitable for general structural loads.
High-Strength Steel: Q355B (China), S355JR (EU), A572 Gr.50 (US)—used for large-span or heavy-load structures (e.g., bridges, high-rise buildings).
05 APPLICATIONS
Galvanized H-steel is widely used in industries requiring both structural stability and corrosion resistance:
Construction Industry: Load-bearing frames of industrial workshops, warehouses, high-rise buildings, and prefabricated houses; purlins and girders in steel structures.
Infrastructure: Bridges, highway guardrails, transmission towers, communication poles, and water treatment plants (resistant to moisture and chemical corrosion).
Industrial Equipment: Frames for mechanical equipment, support structures in chemical plants (resistant to corrosive gases), and platforms in manufacturing workshops.
Agriculture & Aquaculture: Greenhouse frames, livestock barn structures, and offshore aquaculture racks (resistant to humidity and salt spray).
Transportation: Vehicle chassis components, container frames, and railway auxiliary structures.
|
Product Name |
Steel H Beam, H Section Steel Beams, H Shape Steel Beam, Structural Steel H Beam, H Metal Beam |
|
Sizes |
1. Web Width (H): 100-900mm |
|
2. Flange Width (B): 100-300mm |
|
|
3. Web Thickness (t1): 5-30mm |
|
|
Length |
9m 12m or Customized |
|
Standard |
JIS EN ASTM ,ect. |
|
Material |
Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60 A992 G300 |
|
Technique |
Hot / Cold Rolled/Welding |
|
Application |
Construction structure |
|
Inspection |
SGS BV INTERTEK |
|
Packing |
In bundle fasten by steel strip |
|
Surface |
Polishing, annealing, pickling, bright |
|
Machining |
Custom, Kaiping, cutting, pattern |
|
Measure |
Area, in2 |
Flange, bf |
Web, d |
||||||||||
|
width bf, in |
Thickness tf, in |
Width d, in |
Thickness (tw) in |
||||||||||
|
Minimum |
Nominal |
Maximum |
Minimum |
Nominal |
Maximum |
Minimum |
Nominal |
Maximum |
Minimum |
Nominal |
Maximum |
||
|
BEAM H 4 x 4 x 13 LBS x PIE x 40' |
3.83 |
3.873 |
4.060 |
4.310 |
0.324 |
0.345 |
N/A |
4.035 |
4.160 |
4.285 |
0.263 |
0.280 |
N/A |
|
BEAM H 4 x 4 x 13 LBS x FTx 20' |
3.83 |
3.873 |
4.060 |
4.310 |
0.324 |
0.345 |
N/A |
4.035 |
4.160 |
4.285 |
0.263 |
0.280 |
N/A |
|
BEAM H 6 x 6 x 15 LBS x PIE x 40' |
4.43 |
5.803 |
5.990 |
6.240 |
0.244 |
0.260 |
N/A |
5.865 |
5.990 |
6.115 |
0.216 |
0.230 |
N/A |
|
BEAM H 6 x 6 x 15 LBS x FTx 20' |
4.43 |
5.803 |
5.990 |
6.240 |
0.244 |
0.260 |
N/A |
5.865 |
5.990 |
6.115 |
0.216 |
0.230 |
N/A |
|
BEAM H 8 x 8 x 31 LBS x PIE x 40' |
9.13 |
7.808 |
7.995 |
8.245 |
0.409 |
0.435 |
N/A |
7.875 |
8.000 |
8.125 |
0.268 |
0.285 |
N/A |
|
BEAM H 8 x 8 x 31 LBS x FTx 20' |
9.13 |
7.808 |
7.995 |
8.245 |
0.409 |
0.435 |
N/A |
7.875 |
8.000 |
8.125 |
0.268 |
0.285 |
N/A |
|
Beam WF 6x9 LBS x FTx 20' |
2.68 |
3.750 |
3.940 |
4.190 |
0.207 |
0.220 |
N/A |
5.780 |
5.900 |
6.030 |
0.160 |
0.170 |
N/A |
|
Beam WF 6x9 LBS x FTx 40' |
2.68 |
3.750 |
3.940 |
4.190 |
0.207 |
0.220 |
N/A |
5.780 |
5.900 |
6.030 |
0.160 |
0.170 |
N/A |
|
Beam WF 6x12 LBS x ft 20' |
3.55 |
3.810 |
4.000 |
4.250 |
0.263 |
0.280 |
N/A |
5.910 |
6.030 |
6.160 |
0.216 |
0.230 |
N/A |
|
Beam WF 6x12 LBS x ft 40' |
3.55 |
3.810 |
4.000 |
4.250 |
0.263 |
0.280 |
N/A |
5.910 |
6.030 |
6.160 |
0.216 |
0.230 |
N/A |
|
BEAM WF 6 X 15 LBS X FTX 20' |
4.43 |
5.803 |
5.990 |
6.240 |
0.244 |
0.260 |
N/A |
5.865 |
5.990 |
6.115 |
0.216 |
0.230 |
N/A |
|
BEAM WF 6 X 15 LBS X FTX 40' |
4.43 |
5.803 |
5.990 |
6.240 |
0.244 |
0.260 |
N/A |
5.865 |
5.990 |
6.115 |
0.216 |
0.230 |
N/A |
|
Beam WF 6x20 LBS x FTx 20' |
5.87 |
5.830 |
6.020 |
6.270 |
0.348 |
0.370 |
N/A |
6.080 |
6.200 |
6.330 |
0.244 |
0.260 |
N/A |
|
Beam WF 6x20 LBS x FTx 40' |
5.87 |
5.830 |
6.020 |
6.270 |
0.348 |
0.370 |
N/A |
6.080 |
6.200 |
6.330 |
0.244 |
0.260 |
N/A |
|
Beam WF 8x10 LBS x FTx 20' |
2.96 |
3.750 |
3.940 |
4.190 |
0.197 |
0.210 |
N/A |
7.770 |
7.890 |
8.020 |
0.160 |
0.170 |
N/A |
|
Beam WF 8x10 LBS x FTx 40' |
2.96 |
3.750 |
3.940 |
4.190 |
0.197 |
0.210 |
N/A |
7.770 |
7.890 |
8.020 |
0.160 |
0.170 |
N/A |
|
Beam WF 8x15 LBS x FTx 20' |
4.44 |
3.830 |
4.020 |
4.270 |
0.301 |
0.320 |
N/A |
7.990 |
8.110 |
8.240 |
0.235 |
0.250 |
N/A |
|
Beam WF 8x15 LBS x FTx 40' |
4.44 |
3.830 |
4.020 |
4.270 |
0.301 |
0.320 |
N/A |
7.990 |
8.110 |
8.240 |
0.235 |
0.250 |
N/A |
|
Beam WF 8x18 LBS x FTx 20' |
5.26 |
5.060 |
5.250 |
5.500 |
0.310 |
0.330 |
N/A |
8.020 |
8.140 |
8.270 |
0.216 |
0.230 |
N/A |
|
Beam WF 8x18 LBS x FTx 40' |
5.26 |
5.060 |
5.250 |
5.500 |
0.310 |
0.330 |
N/A |
8.020 |
8.140 |
8.270 |
0.216 |
0.230 |
N/A |
|
Beam WF 8x24 LBS x FTx 20' |
7.08 |
6.310 |
6.500 |
6.750 |
0.376 |
0.400 |
N/A |
7.810 |
7.930 |
8.060 |
0.235 |
0.250 |
N/A |
|
Beam WF 8x24 LBS x FTx 40' |
7.08 |
6.310 |
6.500 |
6.750 |
0.376 |
0.400 |
N/A |
7.810 |
7.930 |
8.060 |
0.235 |
0.250 |
N/A |
|
BEAM WF 10 X 12 LBS X FTX 20' |
3.54 |
3.770 |
3.960 |
4.210 |
0.197 |
0.210 |
N/A |
9.750 |
9.870 |
10.000 |
0.179 |
0.190 |
N/A |
|
Beam WF 10x12 LBS x FTx 40' |
3.54 |
3.770 |
3.960 |
4.210 |
0.197 |
0.210 |
N/A |
9.750 |
9.870 |
10.000 |
0.179 |
0.190 |
N/A |
|
BEAM WF 10 X 15 LBS X FTX 20' |
4.41 |
3.810 |
4.000 |
4.250 |
0.254 |
0.270 |
N/A |
9.870 |
9.990 |
10.120 |
0.216 |
0.230 |
N/A |
|
Beam WF 10x15 LBS x FTx 40' |
4.41 |
3.810 |
4.000 |
4.250 |
0.254 |
0.270 |
N/A |
9.870 |
9.990 |
10.120 |
0.216 |
0.230 |
N/A |
|
BEAM WF 10 X 17 LBS X FTX 20' |
4.99 |
3.820 |
4.010 |
4.260 |
0.310 |
0.330 |
N/A |
9.990 |
10.110 |
10.240 |
0.226 |
0.240 |
N/A |
|
Beam WF 10x17 LBS x FTx 40' |
4.99 |
3.820 |
4.010 |
4.260 |
0.310 |
0.330 |
N/A |
9.990 |
10.110 |
10.240 |
0.226 |
0.240 |
N/A |
|
BEAM WF 10 X 19 LBS X FTX 20' |
5.62 |
3.830 |
4.020 |
4.270 |
0.371 |
0.395 |
N/A |
10.120 |
10.240 |
10.370 |
0.235 |
0.250 |
N/A |
|
Beam WF 10x19 LBS x FTx 40' |
5.62 |
3.830 |
4.020 |
4.270 |
0.371 |
0.395 |
N/A |
10.120 |
10.240 |
10.370 |
0.235 |
0.250 |
N/A |
|
BEAM WF 10 X 22 LBS X FTX 20' |
6.49 |
5.560 |
57.750 |
6.000 |
0.338 |
0.360 |
N/A |
10.050 |
10.170 |
10.300 |
0.226 |
0.240 |
N/A |
|
Beam WF 10x22 LBS x FTx 40' |
6.49 |
5.560 |
57.750 |
6.000 |
0.338 |
0.360 |
N/A |
10.050 |
10.170 |
10.300 |
0.226 |
0.240 |
N/A |
|
BEAM WF 10 X 26 LBS X FTX 20' |
7.61 |
5.580 |
5.770 |
6.020 |
0.414 |
0.440 |
N/A |
10.210 |
10.330 |
10.460 |
0.244 |
0.260 |
N/A |
|
Beam WF 10x26 LBS x FTx 40' |
7.61 |
5.580 |
5.770 |
6.020 |
0.414 |
0.440 |
N/A |
10.210 |
10.330 |
10.460 |
0.244 |
0.260 |
N/A |
|
BEAM WF 10 X 30 LBS X FTX 20' |
8.84 |
5.620 |
5.810 |
6.060 |
0.479 |
0.510 |
N/A |
10.350 |
10.470 |
10.600 |
0.282 |
0.300 |
N/A |
|
Beam WF 10x30 LBS x FTx 40' |
8.84 |
5.620 |
5.810 |
6.060 |
0.479 |
0.510 |
N/A |
10.350 |
10.470 |
10.600 |
0.282 |
0.300 |
N/A |
|
BEAM WF 10 X 33 LBS X FTX 20' |
9.71 |
7.770 |
7.960 |
8.210 |
0.409 |
0.435 |
N/A |
9.610 |
9.730 |
9.860 |
0.273 |
0.290 |
N/A |
|
BEAM WF 10 X 39 X 40' |
11.50 |
7.798 |
7.985 |
8.235 |
0.498 |
0.530 |
N/A |
9.795 |
9.920 |
10.045 |
7.506 |
7.985 |
N/A |
|
Beam WF 10x33 LBS x FTx 40' |
9.71 |
7.770 |
7.960 |
8.210 |
0.409 |
0.435 |
N/A |
9.610 |
9.730 |
9.860 |
0.273 |
0.290 |
N/A |
|
Beam WF 10x45 LBS x FTx 40' |
13.30 |
7.830 |
8.020 |
8.270 |
0.583 |
0.620 |
N/A |
9.980 |
10.100 |
10.230 |
0.329 |
0.350 |
N/A |
|
BEAM WF 10 X 49 LBS X FTX 40' |
14.40 |
9.813 |
10.000 |
10.250 |
0.526 |
0.560 |
N/A |
9.855 |
9.980 |
10.105 |
0.320 |
0.340 |
N/A |
|
BEAM WF 10 X 60 LBS X FTX 20' |
17.60 |
9.893 |
10.080 |
10.330 |
0.639 |
0.680 |
N/A |
10.095 |
10.220 |
10.345 |
0.395 |
0.420 |
N/A |
|
BEAM WF 10 X 60 LBS X FTX 40' |
17.60 |
9.893 |
10.080 |
10.330 |
0.639 |
0.680 |
N/A |
10.095 |
10.220 |
10.345 |
0.395 |
0.420 |
N/A |
|
BEAM WF 12 x 14 LBS x FTx 20' |
4.16 |
3.780 |
3.970 |
4.220 |
0.216 |
0.230 |
N/A |
11.780 |
11.910 |
12.040 |
0.188 |
0.200 |
N/A |
|
BEAM WF 12 X 14 LBS X FTX 40' |
4.16 |
3.780 |
3.970 |
4.220 |
0.216 |
0.230 |
N/A |
11.780 |
11.910 |
12.040 |
0.188 |
0.200 |
N/A |
|
Beam WF 12x16 LBS x FTx 20' |
4.71 |
3.800 |
3.990 |
4.240 |
0.254 |
0.270 |
N/A |
11.870 |
11.990 |
12.120 |
0.207 |
0.220 |
N/A |
|
Beam WF 12x16 LBS x FTx 40' |
4.71 |
3.800 |
3.990 |
4.240 |
0.254 |
0.270 |
N/A |
11.870 |
11.990 |
12.120 |
0.207 |
0.220 |
N/A |
|
Beam WF 12x19 LBS x FTx 20' |
5.57 |
3.820 |
4.010 |
4.260 |
0.329 |
0.350 |
N/A |
12.020 |
12.160 |
12.290 |
0.226 |
0.240 |
N/A |
|
Beam WF 12x19 LBS x FTx 40' |
5.57 |
3.820 |
4.010 |
4.260 |
0.329 |
0.350 |
N/A |
12.020 |
12.160 |
12.290 |
0.226 |
0.240 |
N/A |
|
Beam WF 12x22 LBS x FTx 20' |
6.48 |
3.840 |
4.030 |
4.280 |
0.404 |
0.430 |
N/A |
12.190 |
12.310 |
12.440 |
0.244 |
0.260 |
N/A |
|
Beam WF 12x22 LBS x FTx 40' |
6.48 |
3.840 |
4.030 |
4.280 |
0.404 |
0.430 |
N/A |
12.190 |
12.310 |
12.440 |
0.244 |
0.260 |
N/A |
|
Beam WF 12x26 LBS x FTx 20' |
7.65 |
6.300 |
6.490 |
6.740 |
0.357 |
0.380 |
N/A |
12.100 |
12.220 |
12.350 |
0.216 |
0.230 |
N/A |
|
Beam WF 12x26 LBS x FTx 40' |
7.65 |
6.300 |
6.490 |
6.740 |
0.357 |
0.380 |
N/A |
12.100 |
12.220 |
12.350 |
0.216 |
0.230 |
N/A |
|
Beam WF 12x30 LBS x FTx 20' |
8.79 |
6.330 |
6.520 |
6.770 |
0.414 |
0.440 |
N/A |
12.220 |
12.340 |
12.470 |
0.244 |
0.260 |
N/A |
|
Beam WF 12x30 LBS x FTx 40' |
8.79 |
6.330 |
6.520 |
6.770 |
0.414 |
0.440 |
N/A |
12.220 |
12.340 |
12.470 |
0.244 |
0.260 |
N/A |
|
Beam WF 12x35 LBS x FTx 20' |
10.30 |
6.370 |
6.560 |
6.810 |
0.489 |
0.520 |
N/A |
12.380 |
12.500 |
12.630 |
0.282 |
0.300 |
N/A |
|
Beam WF 12x35 LBS x FTx 40' |
10.30 |
6.370 |
6.560 |
6.810 |
0.489 |
0.520 |
N/A |
12.380 |
12.500 |
12.630 |
0.282 |
0.300 |
N/A |
|
Beam WF 12x40 LBS x FTx 20' |
11.80 |
7.820 |
8.010 |
8.260 |
0.484 |
0.515 |
N/A |
11.820 |
11.940 |
12.070 |
0.282 |
0.300 |
N/A |
|
Beam WF 12x40 LBS x FTx 40' |
11.80 |
7.820 |
8.010 |
8.260 |
0.484 |
0.515 |
N/A |
11.820 |
11.940 |
12.070 |
0.282 |
0.300 |
N/A |
|
BEAM WF 12 X 45 LBS X FTX 40' |
13.20 |
7.858 |
8.045 |
8.295 |
0.541 |
0.575 |
N/A |
11.935 |
12.060 |
12.185 |
0.315 |
0.335 |
N/A |
|
BEAM WF 12X 65. LBS X FTX20P |
19.10 |
11.813 |
12.000 |
12.250 |
0.569 |
0.605 |
N/A |
11.995 |
12.120 |
12.245 |
0.367 |
0.390 |
N/A |
|
Beam WF 14x22 LBS x FTx 20' |
6.49 |
4.810 |
5.000 |
5.250 |
0.315 |
0.335 |
N/A |
13.620 |
13.740 |
13.870 |
0.216 |
0.230 |
N/A |
|
Beam WF 14x22 LBS x FTx 40' |
6.49 |
4.810 |
5.000 |
5.250 |
0.315 |
0.335 |
N/A |
13.620 |
13.740 |
13.870 |
0.216 |
0.230 |
N/A |
|
Beam WF 14x26 LBS x FTx 20' |
7.69 |
4.840 |
5.030 |
5.280 |
0.395 |
0.420 |
N/A |
13.790 |
13.910 |
14.040 |
0.244 |
0.260 |
N/A |
|
Beam WF 14x26 LBS x FTx 40' |
7.69 |
4.840 |
5.030 |
5.280 |
0.395 |
0.420 |
N/A |
13.790 |
13.910 |
14.040 |
0.244 |
0.260 |
N/A |
|
Beam WF 14x30 LBS x FTx 20' |
8.85 |
6.540 |
6.730 |
6.980 |
0.362 |
0.385 |
N/A |
13.720 |
13.840 |
13.970 |
0.254 |
0.270 |
N/A |
|
Beam WF 14x30 LBS x FTx 40' |
8.85 |
6.540 |
6.730 |
6.980 |
0.362 |
0.385 |
N/A |
13.720 |
13.840 |
13.970 |
0.254 |
0.270 |
N/A |
|
BEAM WF 14 X 34 LBS X FTX 20' |
10.00 |
6.558 |
6.745 |
6.995 |
0.428 |
0.455 |
N/A |
13.855 |
13.980 |
14.105 |
0.268 |
0.285 |
N/A |
|
BEAM WF 14 X 34 LBS X FTX 40' |
10.00 |
6.558 |
6.745 |
6.995 |
0.428 |
0.455 |
N/A |
13.855 |
13.980 |
14.105 |
0.268 |
0.285 |
N/A |
|
Beam WF 14x38 LBS x FTx 20' |
11.20 |
6.580 |
6.770 |
7.020 |
0.484 |
0.515 |
N/A |
13.980 |
14.100 |
14.230 |
0.291 |
0.310 |
N/A |
|
Beam WF 14x38 LBS x FTx 40' |
11.20 |
6.580 |
6.770 |
7.020 |
0.484 |
0.515 |
N/A |
13.980 |
14.100 |
14.230 |
0.291 |
0.310 |
N/A |
|
Beam WF 14x43 LBS x FTx 40' |
12.60 |
7.810 |
8.000 |
8.250 |
0.498 |
0.530 |
N/A |
13.540 |
13.660 |
13.790 |
0.291 |
0.310 |
N/A |
|
Beam WF 14x48 LBS x FTx 20' |
14.10 |
7.840 |
8.030 |
8.280 |
0.559 |
0.595 |
N/A |
13.670 |
13.790 |
13.920 |
0.320 |
0.340 |
N/A |
|
Beam WF 14x48 LBS x FTx 40' |
14.10 |
7.840 |
8.030 |
8.280 |
0.559 |
0.595 |
N/A |
13.670 |
13.790 |
13.920 |
0.320 |
0.340 |
N/A |
|
BEAM WF 14 X 53 LBS X FTX 20' |
15.50 |
7.873 |
8.060 |
8.310 |
0.620 |
0.660 |
N/A |
13.795 |
13.920 |
14.045 |
0.348 |
0.370 |
N/A |
|
BEAM WF 14 X 53 LBS X FTX 40' |
15.50 |
7.873 |
8.060 |
8.310 |
0.620 |
0.660 |
N/A |
13.795 |
13.920 |
14.045 |
0.348 |
0.370 |
N/A |
|
Beam WF 14x68 LBS x FTx 20' |
20.00 |
9.850 |
10.040 |
10.290 |
0.677 |
0.720 |
N/A |
13.920 |
14.040 |
14.170 |
0.395 |
0.420 |
N/A |
|
Beam WF 14x68 LBS x FTx 40' |
20.00 |
9.850 |
10.040 |
10.290 |
0.677 |
0.720 |
N/A |
13.920 |
14.040 |
14.170 |
0.395 |
0.420 |
N/A |
|
Beam WF 14x74 LBS x FTx 40' |
21.80 |
9.880 |
10.070 |
10.320 |
0.738 |
0.785 |
N/A |
14.050 |
14.170 |
14.300 |
0.423 |
0.450 |
N/A |
|
Beam WF 14x82 LBS x FTx 20' |
24.10 |
9.930 |
10.120 |
10.370 |
0.804 |
0.855 |
N/A |
14.190 |
14.310 |
14.440 |
0.479 |
0.510 |
N/A |
|
Beam WF 14x82 LBS x FTx 40' |
24.10 |
9.930 |
10.120 |
10.370 |
0.804 |
0.855 |
N/A |
14.190 |
14.310 |
14.440 |
0.479 |
0.510 |
N/A |
|
BEAM WF 14X 90 LBS X FTX40P |
26.50 |
14.333 |
14.520 |
14.770 |
0.667 |
0.710 |
N/A |
13.895 |
14.020 |
14.145 |
0.414 |
0.440 |
N/A |
According to grade 50 for ASTM A572 and ASTM A992 Standard
|
Yield strength, psi |
Tensile strength, psi |
Elongation in 8” |
Elongation in 2” |
|
50,000 |
65,000 |
18 |
21 |
Chemical composition
The beams must have a chemical composition in accordance with ASTM A572 and ASTM A992.
|
Element |
ASTM A572 |
ASTM A992 |
|
C |
0.23 |
0.23 |
|
Mn |
1.35 |
0.50 - 1.60 |
|
P |
0.03 |
0.035 |
|
S |
0.03 |
0.045 |
|
Si, max |
|
0.4 |
|
V, max |
|
0.15 |
|
Nb, max. |
|
0.05 |
|
Cu, max. |
|
0.6 |
|
Ni, max. |
|
0.45 |
|
Cr, max. |
|
0.35 |
|
Mo, max. |
|
0.15 |
Maximum values of V, Nb, Ti and N2 depends on de beam
Superficial quality
Rust: No oxidation or slight oxidation on no more than 50% of the surface. No corrosion
Free of surface lamination defects (no mil defects)
Cut: Straight, without residue (straight cut).
Handling and storage
Loading and unloading
Katherine A. Fogg
Your email address will not be published. Required fields are marked with *
Their products are of excellent quality and they offer generous discounts. This is their third cooperation
