Carbon Seamless Steel Pipe: Product Standards, Packaging, Manufacturing Process & Precautions

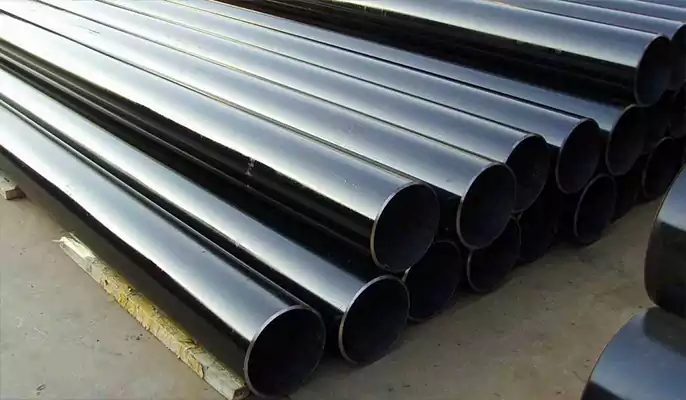

Carbon seamless steel pipes—engineered without welded joints—are foundational components in industries ranging from construction to energy, thanks to their high strength, pressure resistance, and structural integrity. To ensure consistency, safety, and performance, these pipes adhere to strict global standards, require careful packaging, follow a precise manufacturing process, and demand attention to usage precautions. Below is a detailed breakdown of each critical aspect.

1. Product Standards

International Standards

• ASTM A53/A53M (USA): The benchmark standard for carbon steel pipes used in pressure and mechanical applications. It covers two grades:
  • Grade A: Minimum tensile strength of 330 MPa, yield strength of 205 MPa—suitable for low-pressure systems (e.g., water supply, HVAC).
  • Grade B: Higher strength (minimum tensile strength 415 MPa, yield strength 240 MPa)—used for high-pressure pipelines (e.g., oil/gas transmission, steam lines).
    Both grades require hydrostatic testing (to verify pressure tightness) and nondestructive testing (NDT) like ultrasonic inspection for internal defects.
• EN 10216-1 (EU): Specifies requirements for seamless steel pipes for pressure purposes. It classifies pipes by material (e.g., P235GH, P265GH) and mandates tests for tensile strength, impact resistance (especially at low temperatures), and chemical composition (e.g., maximum carbon content of 0.23% for P235GH to avoid brittleness).

Chinese National Standard

• GB/T 8163-2018: The core standard for carbon seamless steel pipes in China, applicable to fluid transportation (water, oil, gas) and general mechanical uses. It requires pipes to meet dimensional tolerances (e.g., outer diameter deviation ≤±0.75% for pipes ≥108mm) and undergo hydrostatic testing at 2.4 MPa (minimum pressure) for 10–30 seconds to ensure no leakage.

Industry-Specific Standards

• API 5L (Oil & Gas): While primarily for line pipes, API 5L also includes carbon seamless grades (e.g., Grade B, X42) for oil and gas transmission. These pipes must resist corrosion in harsh downhole or offshore environments and pass strict NDT (e.g., magnetic particle testing for surface cracks).

2. Packaging

Core Packaging Materials

• Protective Layers:
  • Inner layer: VCI (Volatile Corrosion Inhibitor) film or kraft paper to prevent rust by creating a moisture barrier. For long-term storage (over 6 months), additional anti-rust oil coating (e.g., mineral oil with corrosion inhibitors) is applied.
  • Outer layer: Heavy-duty PE (polyethylene) winding film or jute cloth to shield against scratches and external impact.
• End Protection: Plastic or steel caps/plugs are installed on pipe ends to block dust, water, or debris from entering—critical for pipes used in clean fluid systems (e.g., food processing, pharmaceutical).
• Bundling & Framing:
  • Small-diameter pipes (≤114mm): Bundled with galvanized steel straps (2–3 straps per bundle) to prevent shifting. Each bundle weighs 1–2 tons (max) for easy handling.
  • Large-diameter pipes (>219mm): Placed on custom wooden or steel racks/frames. The frames include anti-slip pads (rubber or foam) to avoid pipe rolling during transit.

Labeling Requirements

• Pipe specifications (outer diameter, wall thickness, length).
• Material grade (e.g., ASTM A53 Grade B, GB/T 8163 20# steel).
• Production batch number, manufacturer name, and standard compliance (e.g., “ASTM A53M-22”).
• Handling symbols: “Keep Dry,” “No Stacking Over 3 Layers,” and “Fragile” (per ISO 780 or GB/T 191).

3. Manufacturing Process

Step 1: Raw Material Preparation

• Ingot Selection: High-quality carbon steel ingots (e.g., 20# steel, Q235B) are chosen based on the target standard. The ingots are inspected for chemical composition (via 光谱分析 /spectrometry) to ensure they meet carbon (0.17–0.24% for 20# steel) and manganese (0.35–0.65%) requirements.

Step 2: Heating

• The ingots are heated in a walking-beam furnace to 1,200–1,250°C (austenitizing temperature). This softens the steel, making it malleable for subsequent forming. Temperature is controlled within ±20°C to avoid overheating (which causes grain coarsening and weakness).

Step 3: Piercing (Seamless Formation)

• Mandrel Mill Process (most common for medium-to-large pipes):
  1. The heated ingot (called a “billet”) is pushed through a piercing mill, where rotating rolls press the billet while a mandrel (a solid metal rod) is inserted into its center—creating a hollow “tube bloom.”
  2. The tube bloom is then rolled through a mandrel mill to reduce its wall thickness and refine its inner/outer diameter.
• Plug Mill Process (for small-diameter pipes): A solid plug (instead of a mandrel) is used to create the hollow center, followed by rolling to achieve the final dimensions.

Step 4: Sizing & Straightening

• The formed pipe is passed through a sizing mill to correct dimensional deviations (e.g., outer diameter, roundness) and ensure compliance with standards.
• It is then straightened using a hydraulic or mechanical straightener to eliminate bending—critical for pipes used in high-pressure systems (bends can cause pressure imbalances).

Step 5: Heat Treatment

• Normalization: Pipes are heated to 850–950°C, held for 30–60 minutes, and air-cooled. This refines the microstructure (converts coarse ferrite-pearlite to fine grains) and improves mechanical properties (e.g., tensile strength, ductility).
• Annealing (for low-carbon grades): Heated to 600–700°C, slow-cooled to reduce hardness—making the pipe easier to machine (e.g., for threading or cutting).

Step 6: Surface Treatment & Testing

• Surface Cleaning: Pipes undergo shot blasting (to remove scale and rust) or pickling (with dilute hydrochloric acid) to achieve a smooth, rust-free surface.
• Testing:
  • Hydrostatic Test: Pipes are filled with water and pressurized to 1.5x their rated working pressure (e.g., 3.6 MPa for ASTM A53 Grade B) to check for leaks.
  • NDT: Ultrasonic testing (for internal defects), magnetic particle testing (for surface cracks), and dimensional inspection (via calipers or laser scanners).
  • Mechanical Testing: Tensile, yield, and elongation tests on sample pipes to verify compliance with standard requirements.

4. Precautions for Usage & Maintenance

4.1 Installation Precautions

• Pressure & Temperature Limits: Never exceed the pipe’s rated pressure (e.g., ASTM A53 Grade B: max 10 MPa at 200°C) or temperature (most carbon seamless pipes are limited to ≤425°C—above this, strength decreases rapidly). For high-temperature applications (e.g., steam lines), use heat-resistant grades (e.g., ASTM A106 Grade B).
• Avoid Over-Tightening: When connecting pipes with threads or flanges, over-tightening can cause thread damage or pipe deformation. Use torque wrenches to follow manufacturer-recommended torque values (e.g., 50–80 N·m for DN50 pipes).
• Alignment: Ensure pipes are properly aligned during installation. Misalignment (e.g., angular deviation >1°) can cause stress concentrations, leading to cracks under pressure.

4.2 Corrosion Prevention

• Environmental Protection: Carbon steel is prone to rust in moist or acidic environments. For outdoor use (e.g., water pipelines), apply anti-corrosion coatings (e.g., epoxy, 3PE) or galvanize the pipe surface. For acidic fluids (e.g., industrial wastewater), use liners (e.g., PVC, rubber) or switch to corrosion-resistant alloys (if budget allows).
• Regular Inspection: Check for rust, pitting, or wall thinning (via ultrasonic thickness gauges) every 6–12 months. For buried pipes, use cathodic protection (sacrificial anodes) to slow corrosion.

4.3 Maintenance & Storage

• Cleaning: Flush pipes regularly (e.g., annually for water lines) to remove sediment buildup—buildup can reduce flow efficiency and cause internal corrosion. Use neutral detergents (avoid acids/alkalis) to clean the inner surface.
• Storage: Store pipes in a dry, well-ventilated warehouse. Avoid direct contact with the ground (use wooden pallets) and stack bundles no more than 3 layers high (to prevent deformation). For long-term storage, reapply anti-rust oil every 3 months.

4.4 Emergency Handling

• If a pipe leaks or bursts, shut off the upstream valve immediately to stop fluid flow. For high-pressure systems (e.g., oil pipelines), do not attempt to repair while under pressure—depressurize the system first. Replace damaged pipes with new ones that meet the same product standard (never mix grades).
