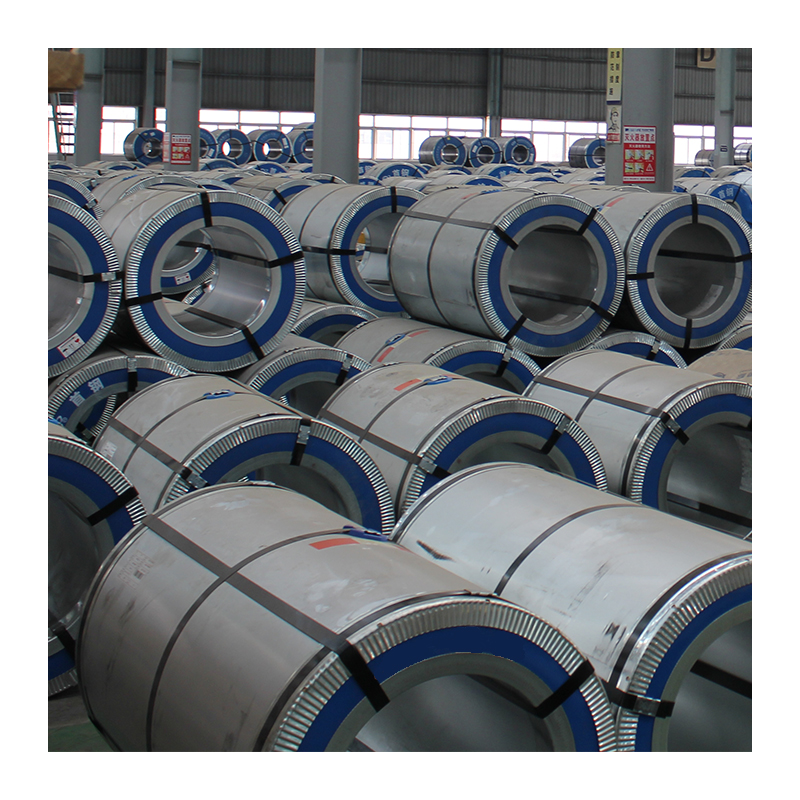

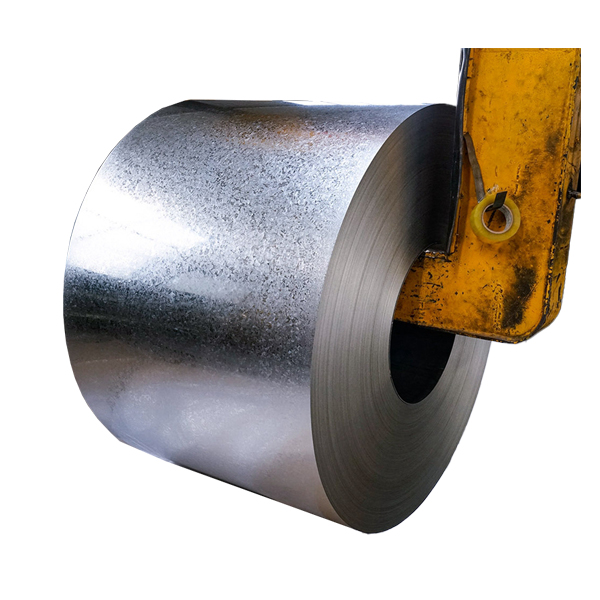

ASTM A653 Galvanized Sheet Coil For Construction
Product Introduction
ASTM A653 galvanized coil is a product that complies with the American Society for Testing and Materials (ASTM) A653 standard. It is made by hot-dip galvanizing, which is to immerse the cold-rolled steel coil in a boiler containing molten zinc so that the zinc layer adheres to the surface of the steel plate. There are also types with zinc-iron alloy coating (hot-dip galvanizing annealing treatment).
This galvanized coil has excellent corrosion resistance and can extend its service life. It has good strength and durability, excellent processing performance, and good weldability and formability.
Key Applications
|
Industry Sector |
Typical Applications |
|
Construction |
Roofing, siding, structural beams, purlins, wall panels |
|
Automotive |
Body panels, frames, chassis components, truck trailers |
|
Appliances & HVAC |
Ductwork, electrical enclosures, housings, ventilation systems |
|
Agriculture |
Grain bins, silos, equipment housings, livestock enclosures |
|
Industrial |
Storage tanks, conveyor systems, industrial shelving |
Packaging
FAQ
Q: What is ASTM A653?
A: A standard for hot-dip zinc-coated (galvanized) or zinc-iron alloy-coated (galvannealed) steel sheets, used for corrosion resistance in construction, automotive, and appliances.
Q:What does "G60" or "G90" mean?
A: Coating weight (oz/ft²):
G30 = 0.30 (light duty)
G60 = 0.60 (general use)
G90 = 0.90 (harsh environments)
Q:What are surface finish options?
Regular spangle (visible crystals)
Minimized/zero spangle (smooth for painting)
|
TYPSA |
||
|
Aspect |
LAMINA FRIA |
|
|
Minimum |
Maximum |
|
|
Weight (Kg) |
8,000 |
12,000 |
|
Width (mm) |
1000 |
1219 |
|
External diameter (mm) |
There is no specification |
Do not exceed the specified weight |
|
Internal diameter (mm) |
507 |
780 |
|
Ovality (mm) |
There is no specification |
There is no specification |
TUBAC permitted weights, diameters, widths and ovality(information for supplier use)
|
Aspect |
SLITTER # 4 |
|
|
Minimum |
Maximum |
|
|
Thickness |
0.6 |
2 |
|
Weight (Kg) |
6,000 |
16,000 |
|
Width (mm) |
904 |
1300 |
|
External diameter (mm) |
There is no specification |
1,800 |
|
Internal diameter (mm) |
484 |
762 |
|
Ovality (mm) |
25 |
25 |
TUBAC permitted weights, diameters, widths and ovality(information for internal use)
|
Aspect |
BONAK |
|
|
Minimum |
Maximum |
|
|
Thickness |
8 |
0.7 |
|
Weight (Kg) |
22,000 |
11,000 |
|
Width (mm) |
1800 |
500 |
|
External diameter (mm) |
2200 |
1500 |
|
Internal diameter (mm) |
860 |
508 |
|
Ovality (mm) |
25 |
25 |
Chemical composition of cold rolled sheet
|
Element (%) |
JIS G3141 SPCCT - SD |
ASTM A1008 CS-B |
|
C (max) |
0.15 |
0.02 - 0.15 |
|
Mn (max) |
1.00 |
0.60 |
|
P (max) |
0.100 |
0.025 |
|
S (max) |
0.035 |
0.035 |
Reference standard: JIS G3141, SPCCT-SD grade
Reference standard: ASTM A1008 CS-B
JIS G3141: Japanese Standard
SPCC: Indicates the grade for a commercial quality steel (Table No. 1 JIS G3141 Standard)
T: Consensus voltage resistance level (Table No. 5, note C, JIS G3141 Standard)
S: Standard hardness level (Table No. 2 JIS G3141 Standard)
D: Matte surface finish (Table No. 3 JIS G3141 Standard)
NOTE: Boron must be less than 0.0008% according to the Central American SAC Tariff system.
NOTE: If you wish to purchase cold rolled sheet with a different specification than the one in Table No. 1, you must do so using the FRM-0AI00003-15 Request for Exception to a Standard format, according to the standard EO-0AI00003-07 Non-compliance with standard.
5.2.Mechanical Specifications
Measurement method: Tensile test carried out on a universal mechanical testing machine according to ASTM A370 standard.
Mechanical properties of cold rolled sheet
|
Element (%) |
JIS G3141 SPCCT - SD |
ASTM A1008 CS-B |
|
Tensile strength (Mpa) min |
290 |
- |
|
Yield strength (Mpa) |
205 - 275 |
160 - 260 |
|
Elongation (%) min |
30 |
30 |
Reference standard: JIS G3141, SPCCT-SD grade
Reference standard: ASTM A1008 CS-B
JIS G3141: Japanese Standard
o SPCC: Indicates the grade for a commercial quality steel (Table No. 1 JIS G3141 Standard)
o T: Consensus voltage resistance level (Table No. 5, note C, JIS G3141 Standard)
