Steel nail,Galvanized steel nail
Table 1: Dimensional specifications of galvanized nail for sheet metal
|
* Galvanized nail for sheet metal 2 1/2 x 9" |
|||||||
|
Specification |
Measurement (in) |
Measurement (mm) |
|||||
|
Nominal |
Tolerance(±) |
Min. |
Máx |
Nominal |
Min. |
Máx. |
|
|

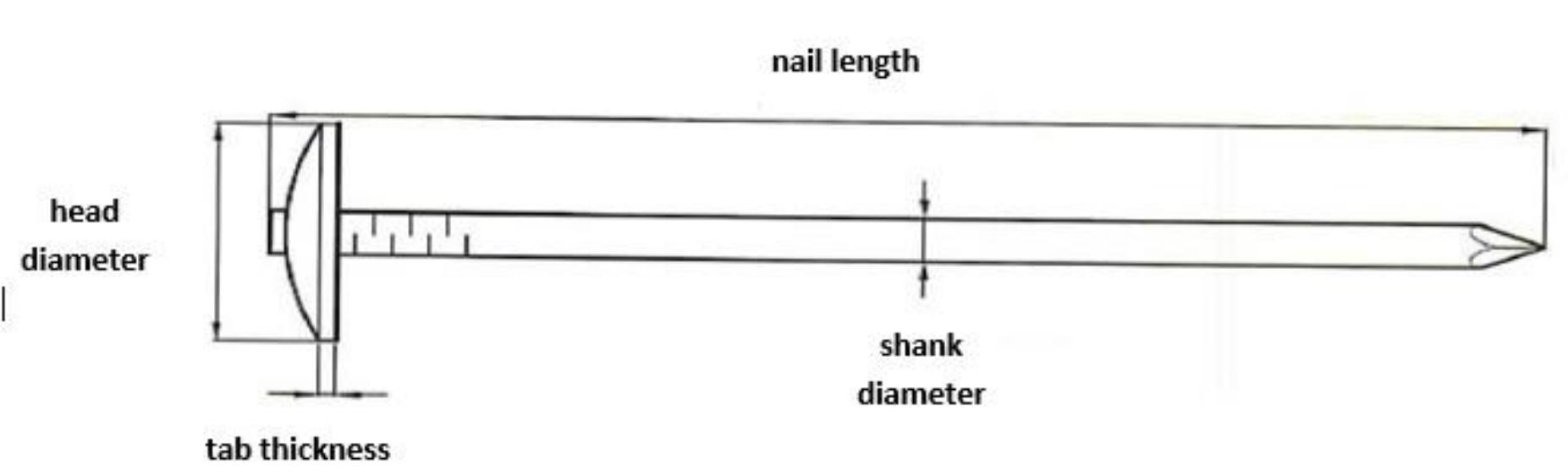

**Spike length |
2.5 |
1/16 |
2.438 |
2.563 |
63.5 |
61.91 |
65.09 |
|
**Shank diameter |
0.148 |
0.004 |
0.144 |
0.152 |
3.76 |
3.66 |
3.86 |
|
***Head diameter |
0.813 |
0.0813 |
0.732 |
0.894 |
20.65 |
18.59 |
22.72 |
|
Head thickness |
0.035 |
0.001 |
0.034 |
0.036 |
0.90 |
0.87 |
0.92 |
|

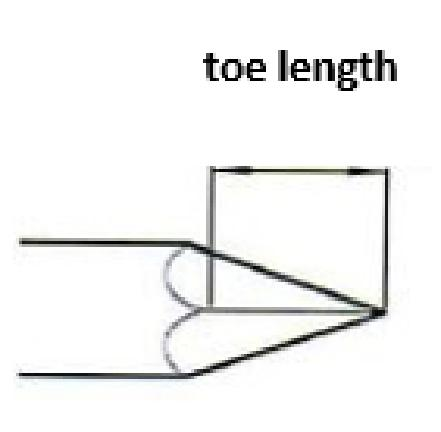

Toe length |
0.216 |
0.072 |
0.144 |
0.288 |
5.49 |
3.66 |
7.32 |
BEND YIELD (PSI)
· 9-1/2 to 7 gauged wire >90,000 PSI
· < 9-1/2 gauged wire >100,000 PSI</span> </p> <p class="p" style="margin-left:0.0000pt;vertical-align:baseline;background:#FFFFFF;"> PENNY WEIGHT / GAUGE RANGES </p> <p class="MsoNormal" style="margin-left:36.0000pt;text-indent:-18.0000pt;vertical-align:baseline;"> · <span>2d - 40d (1" - 5") / 15-1/2 - 8</span> </p> <p class="MsoNormal"> <br /> </p> <p class="MsoNormal"> Zinc coating specifications </p> <p class="MsoNormal"> Measurement method </p> <p class="MsoNormal"> • Zinc coating - chemical pickling according to ASTM A90 </p> <p class="MsoNormal"> The type of zinc coating is EG, with a minimum quantity of 27 g/m2, according to internal criteria. </p> <p class="MsoNormal" style="text-indent:0pt;"> Surface quality </p> <p class="MsoNormal" style="text-indent:0pt;"> The surface quality of the product must be as follows: </p> <p class="MsoNormal" style="text-indent:0pt;"> Head centered on the body of the nail </p> <p class="MsoNormal" style="text-indent:0pt;"> Sheet properly secured to the body of the nail </p> <p class="MsoNormal" style="text-indent:0pt;"> Straight tang </p> <p class="MsoNormal" style="text-indent:0pt;"> Burr-free tip </p> <p class="MsoNormal" style="text-indent:0pt;"> Smooth finish </p> <p class="MsoNormal" style="text-indent:0pt;"> Silver </p> <p class="MsoNormal" style="text-indent:0pt;"> Rust free. </p> </p> </p> </p>
