MS Angles L Profile Unequal Equal Steel Angles
Introduction to Angle Steel (Angle Bar)

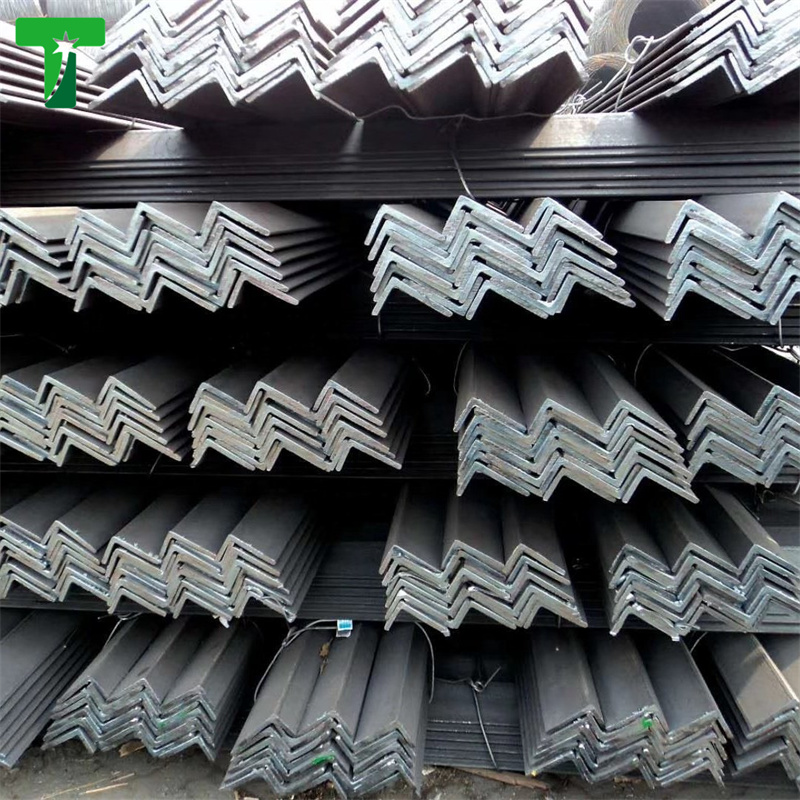

Angle steel, commonly referred to as angle bar, is a fundamental hot-rolled or welded structural steel product distinguished by its distinctive L-shaped cross-section. Comprising two perpendicular "legs" (either equal or unequal in length) joined at a right angle, this design balances structural rigidity, connectivity, and material efficiency—making it an indispensable component in construction, infrastructure, and industrial manufacturing globally.
Dimensional Specifications & Steel Grades
1. Dimensional Expression
Angle steel dimensions are universally specified in millimeters (mm) using a clear format:
Equal-Leg: Leg Length × Leg Length × Leg Thickness (e.g., 63×63×5, 100×100×8)
Unequal-Leg: Longer Leg × Shorter Leg × Leg Thickness (e.g., 125×80×10, 200×125×12)
Common leg lengths range from 20mm to 200mm, with thicknesses from 3mm to 20mm. Standard lengths are 6m, 9m, or 12m, though custom cutting is available for project-specific needs.

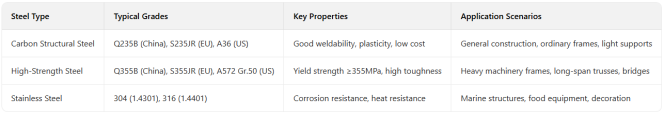

2. Common Steel Grades
The base material adheres to global structural steel standards, with grades selected based on load requirements, environment, and weldability:
L Shapes (Equal leg)
|
|
Length of leg (mm) |
Thickness (mm) |
|||||||||
|
Producto |
Calidad |
Mín 团 |
Nom |
Máx |
Mín |
Nom |
Máx |
|
|
|
|
|
PERFIL ANGULAR 3/4"X1/8"X6M |
Legítimo |
18.26 |
19.05 |
19.84 |
2.97 |
3.18 |
3.38 |
|
|
|
|
|
PERFIL ANGULAR 3/4"X1/8X6MC |
Comercial |
18.26 |
19.05 |
19.84 |
2.00 |
2.20 |
2.40 |
|
|
|
|
|
PERFIL ANGULAR 3/4"X1/8X6M R |
Milimétrico |
18.26 |
19.05 |
19.84 |
2.60 |
2.70 |
2.80 |
|
|
|
|
|
PERFIL ANGULAR 1"X1/4"X6M |
Legítimo |
24.61 |
25.40 |
26.19 |
6.10 |
6.35 |
6.60 |
|
|
|
|
|
PERFIL ANGULAR 1"X1/8"X6M |
Legítimo |
24.61 |
25.40 |
26.19 |
2.97 |
3.18 |
3.38 |
|
|
|
|
|
PERFIL ANGULAR 1"X3/16"X6M |
Legítimo |
24.61 |
25.40 |
26.19 |
4.56 |
4.76 |
4.97 |
|
|
|
|
|
PERFIL ANGULAR 1"X1/8"X6MC |
Comercial |
24.61 |
25.40 |
26.19 |
2.10 |
2.20 |
2.30 |
|
|
|
|
|
PERFIL ANGULAR 1"X1/8X6M R |
Milimétrico |
24.61 |
25.40 |
26.19 |
2.60 |
2.70 |
2.80 |
|
|
|
|
|
PERFIL ANGULAR 1 1/4"X1/8X6MC |
Comercial |
30.51 |
31.75 |
32.89 |
2.10 |
2.20 |
2.30 |
|
|
|
|
|
PERFIL ANGULAR 1 1/4"X1/8X6M R |
Milimétrico |
30.51 |
31.75 |
32.89 |
2.60 |
2.70 |
2.80 |
|
|
|
|
|
PERFIL ANGULAR 1 1/4"X1/8"X6M |
Legítimo |
30.56 |
31.75 |
32.94 |
2.92 |
3.18 |
3.43 |
|
|
|
|
|
PERFIL ANGULAR 1 1/4"X3/16"X6M |
Legítimo |
30.56 |
31.75 |
32.94 |
4.51 |
4.76 |
5.02 |
|
|
|
|
|
PERFIL ANGULAR 1 1/4"X1/4"X6M |
Legítimo |
30.56 |
31.75 |
32.94 |
6.10 |
6.35 |
6.60 |
|
|
|
|
|
PERFIL ANGULAR 1 1/2"X1/8"X6M |
Legítimo |
36.91 |
38.10 |
39.29 |
2.92 |
3.18 |
3.43 |
|
|
|
|
|
PERFIL ANGULAR 1 1/2"X3/16"X6M |
Legítimo |
36.91 |
38.10 |
39.29 |
4.51 |
4.76 |
5.02 |
|
|
|
|
|
PERFIL ANGULAR 1 1/2"X1/4"X6M |
Legítimo |
36.91 |
38.10 |
39.29 |
6.10 |
6.35 |
6.60 |
|
|
|
|
|
PERFIL ANGULAR 1 1/2"X1/8X6M R |
Milimétrico |
36.91 |
38.10 |
39.29 |
2.60 |
2.70 |
2.80 |
|
|
|
|
|
PERFIL ANGULAR 1 1/2"X1/8X6MC |
Comercial |
36.91 |
38.10 |
39.29 |
2.10 |
2.20 |
2.30 |
|
|
|
|
|
PERFIL ANGULAR 1 1/2"X3/16X6M R |
Milimétrico |
36.91 |
38.10 |
39.29 |
3.90 |
4.00 |
4.10 |
|
|
|
|
|
PERFIL ANGULAR 2"X1/8"X6M R |
Milimétrico |
49.00 |
50.80 |
51.60 |
2.60 |
2.70 |
2.80 |
|
|
|
|
|
PERFIL ANGULAR 2"X1/8"X6M |
Legítimo |
49.61 |
50.80 |
51.99 |
2.92 |
3.18 |
3.43 |
|
|
|
|
|
PERFIL ANGULAR 2"X3/16"X6M |
Legítimo |
49.61 |
50.80 |
51.99 |
4.51 |
4.76 |
5.02 |
|
|
|
|
|
PERFIL ANGULAR 2"X1/4"X6M |
Legítimo |
49.61 |
50.80 |
51.99 |
6.10 |
6.35 |
6.60 |
|
|
|
|
|
PERFIL ANGULAR 2"X3/8"X6M |
Legítimo |
49.61 |
50.80 |
51.99 |
9.27 |
9.53 |
9.78 |
|
|
|
|
|
PERFIL ANGULAR 2 1/2"X3/16"X6M |
Legítimo |
61.91 |
63.50 |
65.09 |
4.46 |
4.76 |
5.07 |
|
|
|
|
|
PERFIL ANGULAR 2 1/2"X1/4"X6M |
Legítimo |
61.91 |
63.50 |
65.09 |
5.97 |
6.35 |
6.73 |
|
|
|
|
|
PERFIL ANGULAR 2 1/2"X3/8"X6M |
Legítimo |
61.91 |
63.50 |
65.09 |
9.14 |
9.53 |
9.91 |
|
|
|
|
|
PERFIL ANGULAR 3"X3/16"X6M |
Legítimo |
73.82 |
76.20 |
79.38 |
4.4577 |
4.76 |
5.0673 |
|
|
|
|
|
PERFIL ANGULAR 3"X1/4"X6M |
Legítimo |
73.82 |
76.20 |
79.38 |
2.41935 |
6.35 |
6.731 |
|
|
|
|
|
PERFIL ANGULAR 3"X1/2"X6M |
Legítimo |
73.82 |
76.20 |
79.38 |
No esp. |
12.70 |
No esp. |
|
|
|
|
|
PERFIL ANGULAR 3"X3/8"X6M |
Legítimo |
73.82 |
76.20 |
79.38 |
No esp. |
9.53 |
No esp. |
|
|
|
|
|
PERFIL ANGULAR 4"X1/4"X6M |
Legítimo |
99.22 |
101.60 |
104.78 |
No esp. |
6.35 |
No esp. |
|
|
|
|
|
PERFIL ANGULAR 4"X3/8"X6M |
Legítimo |
99.22 |
101.60 |
104.78 |
No esp. |
9.53 |
No esp. |
|
|
|
|
|
PERFIL ANGULAR 4"X1/2"X6M |
Legítimo |
99.22 |
101.60 |
104.78 |
No esp. |
12.70 |
No esp. |
|
|
|
|
Measurement method: Trace reference material from end to end and measure between the reference material and the shape at its greatest distance.
|
Product |
Width |
Maximum straightness, mm |
|
|
L Shape |
< 3 inches |
25 mm |
|
|
≥3 inches |
12.5 mm |
|
|
|
Round bar |
|
25 mm |
|
|
Square bar |
|
25 mm |
|
|
Flat |
|
25 mm |
|
|
T Shape |
|
25 mm |
|
|
C Shape |
|
25 mm |
|
|
Yield point, psi (Autographic Diagram Method according to ASTM A370 standard) |
36,000 |
|
Tensile strength, psi |
58,000 - 80,000 |
|
Elongation in 8 in, % |
20 |
De acuerdo a lo establecido en la norma ASTM A36
|
Element |
Specification |
|
C |
0.26 |
|
Mn |
|
|
P |
0.04 |
|
S |
0.05 |
|
Si, máx |
0.40 |
According to ASTM A6 Standard, Structural products shall be free of injurious
defects and shall have a workmanlike finish.
Free of rust
Cut: straight cut
Tie with strapping or wire rod
Protected to prevent rust in transport
Quality certificate must include heat number, chemical composition, tensile test results
